benwebsize_kj03Pets are integral emotional companions of our daily lives, they always have time for us and never have a bad day. When they finally pass they must be treated with dignity and respect.

Cremation Systems manufactures two retorts for pet cremations.

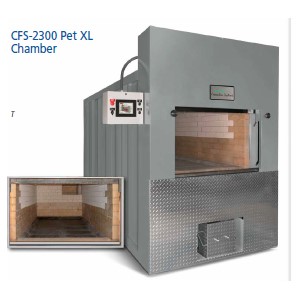

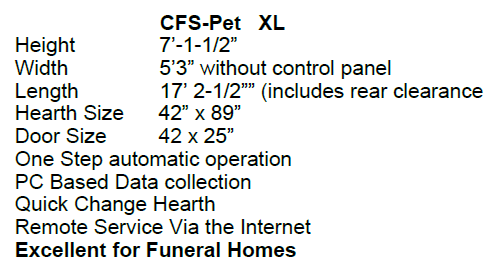

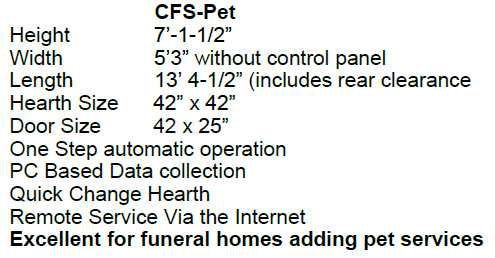

The CFS-Pet has a 300 lb capacity, and a 100 lb / hour cremation burn rate. The larger CFS-2300 Pet XL has a 800 lb capacity, and a 150 lb / hour cremation burn rate.

Both the CFS-Pet and CFS-2300 Pet XL offer the following features:

  • One step, automatic operation
  • High efficiency refractory lining
  • Hot hearth, recessed design with Quick Change Hearth tiles.
  • Automatic Pollution Monitoring control
  • PC based data collection
  • Touch screen digital controls
  • Remote service access via the internet
  • UL listed
CFS-Pet and CFS-2300 Pet XL CFS-Pet and CFS-2300 Pet XL

General Dimensions:

CFS-Pet CFS2300 Pet XL
Height 7’ 7-1/2” 7’ 7-1/2”
Width 5’ 3” without control panel 5’ 3” without control panel
Length 13’ 4-1/2” (includes rear clearance) 17’ 2-1/2” (includes rear clearance)
Hearth Area 42” x 42” 42” x 89”
Door Size 42” x 25” 42” x 25”

Utility requirements:

CFS-Pet CFS2300 Pet XL
Natural Gas 1000 BTU/Cu ft,

1500 CFS at 7” W.C. minimum

1000 BTU/Cu ft,

2300 CFS at 7” W.C. minimum

Propane 2500 BTU/Cu ft,

600 CFH at 11” W.C. minimum

2500 BTU/Cu ft,

1500 CFH at 11” WC

Electrical 208/240 VAC, 1 phase, 40 amp 208/240 VAC, 1 phase, 40 amp

Read our preparation steps for a Zoning Hearing!
